Centrifugal Dehydrator

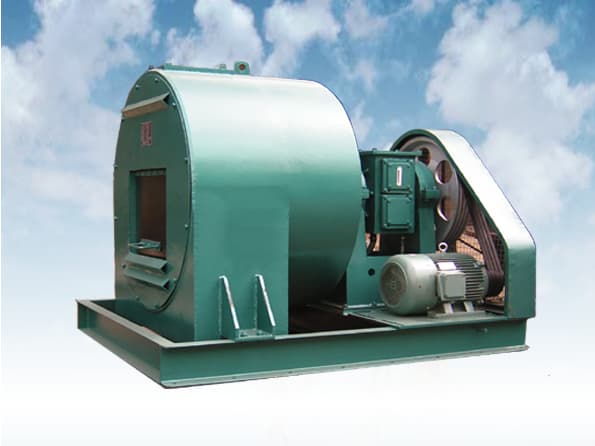

The product is a horizontal vibrating centrifugal dewatering machine.
1.High processing capacity with excellent dehydration performance.
2.Minimal product breakage, screen basket wears less and lasts longer.
3.The TWZ system is an inertial resonance vibration system, ensuring stable and reliable amplitude and frequency.
4.The TWZ vibration system features smooth operation, low noise, simple structure, easy maintenance, and energy-saving advantages.
Horizontal vibrating centrifuges belong to centrifugal dewatering equipment. This series of horizontal vibrating centrifuges is mainly used for dewatering medium and clean coal with particle sizes ranging from 0.5 to 20mm in coal preparation plants, and can also be used for dewatering other similar materials.
The horizontal vibrating centrifuge is a solid-liquid separation equipment that separates materials on a high-speed rotating screen. The rapid vibration system applies an additional vibratory force to the materials on the screen,automatic discharge of solid-liquid separation.
| Parameter | Unit | Model | ||||
| TWZ850 | TWZ850 | TWZ850 | TWZ850 | |||
| Feed Particle Size | mm | 0.5～50 | 0～50 | ≤50 | 0.5～50 | |
| Processing Capacity | t/h | 100～150 | 180～250 | 200～300 | 250～350 | |
| Product Moisture | % | 5～9 | ||||
| Screen Basket Large End Diameter | mm | 1150 | 1300 | 1400 | 1500 | |
| Screen Slot Size | mm | 0.25,0.3,0.35,0.5 | ||||
| Screen Basket Vibration Frequency | Hz | 25 | 25 | 25 | 25 | |
| Double Amplitude | mm | 4～6 | 4～6 | 4～6 | 4～6 | |
| Main Motor Power | Kw | 37.5 | 45 | 55 | 75 | |
| Vibration Motor Power | Kw | 7.5 | 7.5 | 11 | 15 | |
| Oil Pump Motor Power | Kw | 0.55 | 0.55 | 0.55 | 0.55 | |
| Overall Dimension | Length | mm | 2800 | 2700 | 3100 | 3170 |
| Width | mm | 1930 | 2260 | 3090 | 2975 | |
| Height | mm | 1930 | 2245 | 2295 | 2400 | |
| Equipment Weight | Kg | 5527 | 6500 | 9200 | 10000 | |
Note: The external moisture of the product is related to the properties, particle size composition and processing capacity of the material, but it mainly depends on the slime content in the feed. When the content of particles with a size of -0.5mm in the feed is less than 10%, the external moisture of the product is generally 5~9%.
